The Lifeline of Light: Demystifying Optical Fiber Structure and Why It's Your Network’s Foundation

Table of Contents:






In the world of optical communication,one truth is absolute: without optical fiber, there is no light-based data transmission. As the essential highway for light signals, the design and integrity of the fiber directly determine the performance and reliability of your entire network. At HYTOPTODEVICE TECHNOLOGY, a leading optical module manufacturer and direct source factory, our expertise extends beyond designing transceivers. It is built upon a deep, practical understanding of optical fiber structure, its procurement, and meticulous handling—ensuring every module we build interacts flawlessly with this critical lifeline.


 一、The Blueprint of Light – Optical Fiber Structure Diagram

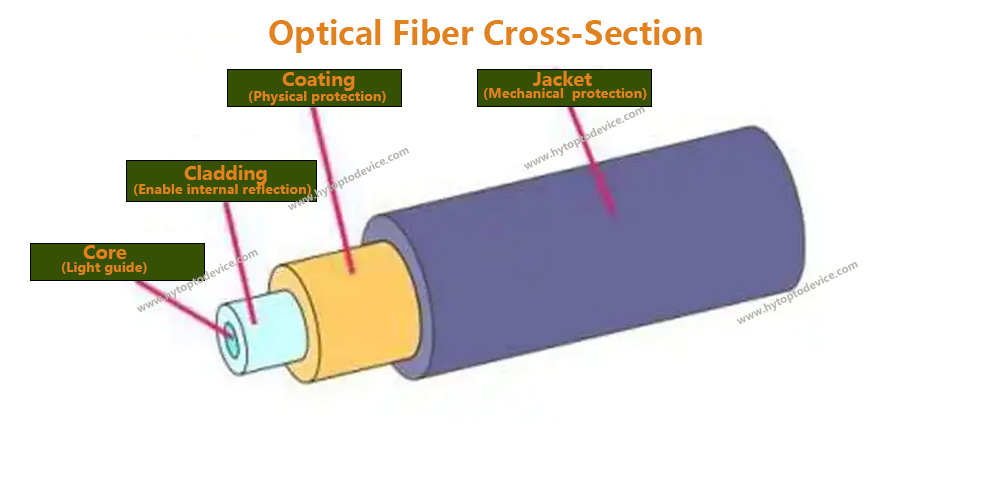

At its heart, a standard communication fiber is a marvel of layered engineering. Here is a breakdown of its cross-sectional view:

From the center outward:
    1. **Core:** The central pathway for light.
    2. **Cladding:** Confines the light within the core.
    3. **Coating:** Protects the fragile glass.
    4. **Jacket:** Provides robust external protection.
```
Each layer plays a non-negotiable role in efficient signal transmission.

二、 Layer by Layer – The Function of Each Fiber Component

1. Core:

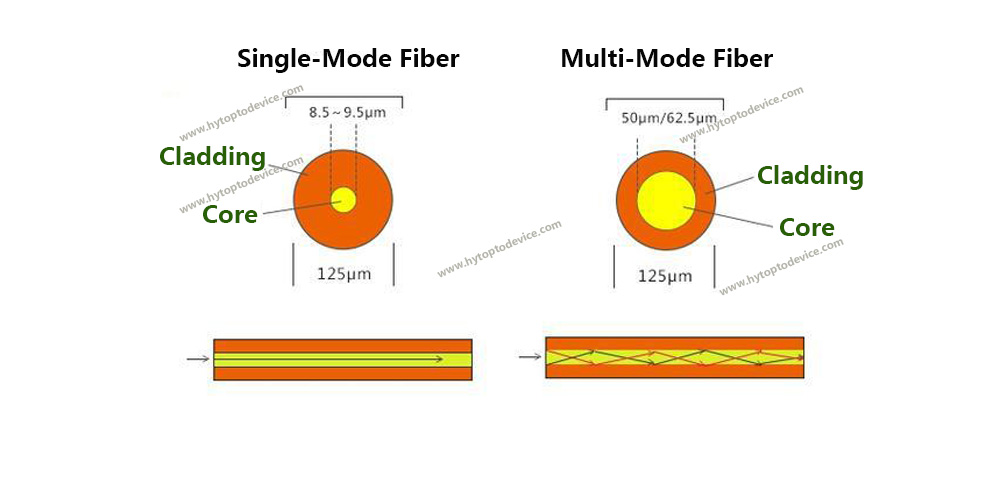

   · Material & Function: Made of ultra-pure silica, doped to have the highest refractive index. It is the primary light propagation channel. Its tiny diameter (8.5-9.5µm for Single-Mode Fiber, 50/62.5µm for Multi-Mode Fiber) dictates the fiber's performance category.
2. Cladding:
   · Material & Function: Surrounds the core with a lower refractive index. This creates the fundamental optical principle of total internal reflection, perfectly trapping light within the core and preventing signal leakage.
3. Coating (Primary Buffer):
   · Material & Function: A soft, protective polymer layer applied directly to the glass. It is crucial for preventing micro-bends and protecting the pristine glass surface from moisture and scratches—a key factor in long-term reliability.
4. Jacket (Secondary Buffer):
   · Material & Function: The tough outer shell, typically made of materials like PVC or LSZH. It provides mechanical strength, crush resistance, and environmental protection against chemicals, abrasion, and UV radiation.



三、Practical Insights: Fiber Application & Handling Notes for Network Success

     Understanding the structure is only half the battle. Proper handling is what ensures performance in the field. Here are critical considerations from our experience as a direct optical module supplier:

· Bend Radius is Sacred: Exceeding the fiber's minimum bend radius causes macrobending or microbending loss, leading to signal attenuation. Always follow manufacturer specifications during installation and in patch panels.
· Connector Care is Non-Negotiable: The fiber end-face is the critical handshake point with our optical transceivers. Contamination is the #1 cause of link failures. Implement strict cleaning protocols using appropriate tools (clicker pens, lint-free wipes, inspection scopes) for both connectors and transceiver ports.
· Choose the Right Fiber for the Job: Mismatching fiber types (e.g., using MMF for a long-distance link) guarantees failure. Clearly understand your application's needs for distance, bandwidth (BW), and wavelength to select between Single-Mode and Multi-Mode fiber.
· Protect the Physical Layer: Even with a robust jacket, fibers are sensitive to excessive tension, crushing, and harsh environments. Use proper conduits, avoid sharp edges, and specify armored fiber cables for demanding industrial or outdoor deployments.



四、Our Source Factory Commitment: Built on Fiber Fundamentals

Why does this deep fiber knowledge matter when you buy a transceiver? Because at HYTOPTODEVICE TECHNOLOGY, we don't just source components; we engineer systems.

· Informed Procurement: Our optical module manufacturing begins with sourcing high-grade fiber and connectors from trusted partners, understanding their specifications at a structural level.
· Assembly & Testing Precision: Our production process is designed to protect and utilize fiber correctly. From the ferrule alignment inside our modules to the final end-to-end performance testing, we treat the fiber path with the utmost care to ensure low insertion loss and high stability.
· Quality That Extends Beyond the Port: We view every optical transceiver as an extension of your fiber network. By mastering the fundamentals of fiber, we ensure our modules are not just compatible but optimized for real-world conditions, delivering the reliability and performance your network demands.

五、Conclusion & Call to Action:

    The journey of a light signal is only as strong as its path.From the precision of the core and cladding to the protection of the coating and jacket, every element of optical fiber structure matters.
