Fiber Optic Patch Cable Endface Selection Guide: APC, UPC, and PC in Relation to Optical Modules

By Jeff December 21st, 2025 143 views
In the deployment and maintenance of fiber optic networks, the choice of patch cable endface type directly impacts system performance, connection quality, and the reliability of your optical transceivers. As a leading provider in the field, HYTOPTODEVICE TECHNOLOGY emphasizes that understanding the differences between APC, UPC, and PC connector endfaces is critical for optimizing your optical communication infrastructure.
Table of Contents
                一、Endface Types Explained
                二、The Critical Link to Optical Transceivers and Communication Performance
                三、Selection Guide for Your Application In Optical Communication and Networks
                四、Best Practices and Precautions from HYTOPTODEVICE TECHNOLOGY
                五、Conclusion

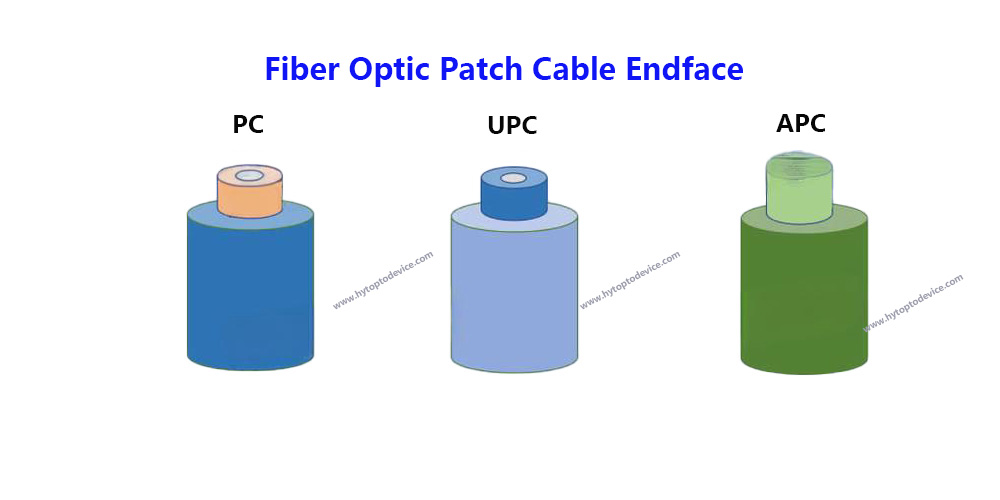

一、Endface Types Explained


 1.PC (Physical Contact)

· Endface Characteristics: Slightly curved, ball-shaped polish
· Typical Return Loss: ≥40 dB
· Primary Applications: Legacy fiber systems, telecom networks, scenarios with lower reflection sensitivity. Compatible with many standard optical transceivers for basic digital links.

2.UPC (Ultra Physical Contact)

· Endface Characteristics: Super-finished polish with a more pronounced spherical curvature
· Typical Return Loss: ≥50 dB
· Primary Applications: Modern digital networks, Ethernet, data centers, and FTTH. This is the most common standard for digital optical transceivers (SFP, SFP+, QSFP, etc.) used in high-speed data transmission.

3.APC (Angled Physical Contact)

· Endface Characteristics: 8-degree angled polish
· Typical Return Loss: ≥65 dB (Lowest reflection)
· Primary Applications: CATV, RF video transmission, high-wavelength division multiplexing (WDM/DWDM) systems, and any application highly sensitive to back-reflection, such as those using DFB lasers in advanced transceivers.

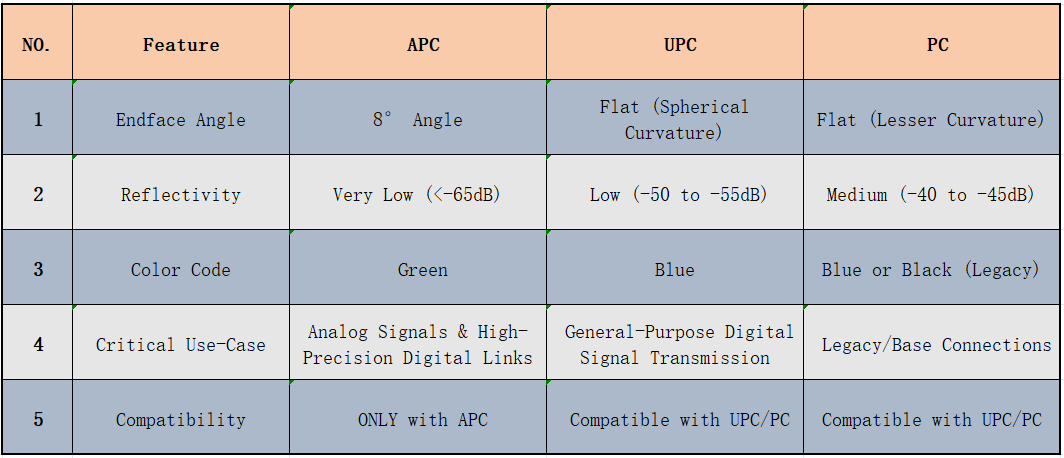

    Key Differences and Comparison:


二、The Critical Link to Optical Transceivers and Communication Performance

The choice of endface is not just about the patch cable; it's about protecting and maximizing the performance of your valuable fiber optical transceivers and modules.

· Minimizing Back-Reflection: Back-reflection (optical return loss) is light that reflects back toward the source. Excessive reflection can cause laser instability, increased noise, and higher bit-error rates in optical transceivers. This is why APC connections are mandatory for systems using DFB lasers, CATV, or long-haul DWDM, where signal integrity is paramount.
· Insertion Loss: All three types aim for low insertion loss, but a contaminated or mismatched endface will increase loss, reducing the power budget of your link and potentially causing transceiver receiver errors.
· System Longevity: Consistently using the correct, high-quality endface type reduces stress on the laser within the transceiver, contributing to longer module lifespan and higher network reliability.

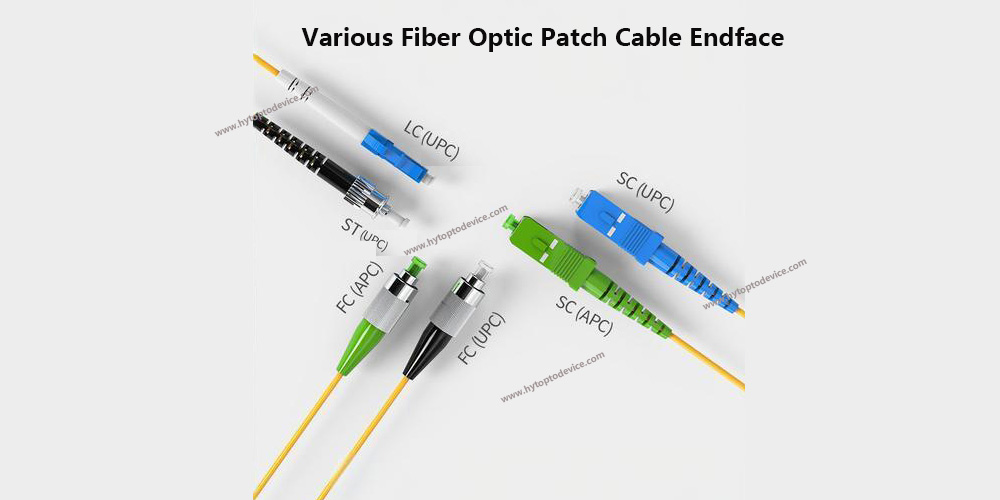

三、Selection Guide for Your Application In Optical Communication and Networks

1.Choose APC (Green) when:

· Connecting to CATV/Video distribution equipment.
· Using Passive Optical Networks (PON/GPON/XGS-PON) for FTTH.
· Deploying high-precision WDM/DWDM systems.
· Your optical transceiver datasheet specifically requires APC interfaces to control reflectance.

2.Choose UPC (Blue) when:

· Deploying standard data center interconnects (Ethernet, Fibre Channel).
· Connecting enterprise network switches, routers, or servers.
· Building general-purpose fiber optic communication links for digital data.
· This is the default and recommended choice for over 90% of digital communication applications.

Note on PC: While still functional, PC is largely considered legacy. UPC offers superior performance and is the recommended upgrade path.



四、Best Practices and Precautions from HYTOPTODEVICE TECHNOLOGY

1. Never Mix APC and UPC/PC: Forcing an APC connector into a UPC port (or vice versa) will cause catastrophic damage to both the connector endface and potentially the optical transceiver's receptacle.
2. Inspect and Clean Religiously: Use a fiber inspection microscope and proper cleaning tools (clicker pens, cassettes) on both the patch cable endface and the transceiver port before every mating. Contamination is the leading cause of link failures.
3. Test Your Links: Verify insertion loss with an optical power meter to ensure it meets the budget of your transceivers.
4. Quality Matters: Invest in high-quality fiber optic patch cables with proper polish and sturdy connectors to ensure consistent performance and durability.

五、Conclusion

   Selecting the correct fiber patch cable endface—APC, UPC, or PC—is a fundamental decision in optical communication design. It protects your investment in optical modules and transceivers, ensures signal integrity, and guarantees network stability.

For modern digital systems, UPC is the versatile, high-performance standard. Reserve APC for specific, reflection-sensitive applications. Always confirm the interface type required by your equipment.

At HYTOPTODEVICE TECHNOLOGY, we provide not only reliable optical components,optical transceivers,DAC,AOC cables, but also the expertise to guide your choices. Contact our technical support team for assistance in selecting the optimal fiber optic patch cables, transceivers, and solutions tailored to your specific network requirements
