800G OSFP is the form factor at the center of every serious hyperscale build and AI fabric upgrade happening right now. If you're speccing a 51.2T spine switch, evaluating breakout strategies for GPU cluster interconnects, or planning a 400G-to-800G migration, this guide covers what you need: form factor specifics, variant selection, power trade-offs, platform compatibility, and where third-party compatible modules make financial sense.
OSFP stands for Octal Small Form-factor Pluggable. Defined by the OSFP MSA group, it carries 8 electrical lanes at 100G each using PAM4 modulation — 800 Gbps aggregate. The spec is purpose-built for applications where QSFP-DD's power envelope isn't enough.
The larger physical footprint is intentional. That extra space accommodates higher-power optical engines, better thermal dissipation, and coherent optics support at 800G without the thermal constraints that would otherwise force design compromises.
OSFP modules use a single-row faceplate configuration. A 1RU switch with OSFP ports typically delivers 32 to 36 ports at 800G, enabling 25.6T to 28.8T per slot. Some 51.2T platforms use dual-row configurations to push density further.
Both target 400G and 800G applications, but they're not interchangeable. Here's where they diverge in practice:
| Parameter | OSFP | QSFP-DD |
|---|---|---|
| Max electrical lanes | 8 x 100G PAM4 | 8 x 100G PAM4 |
| Max power per port | ~24W | ~15W |
| Physical size | Larger footprint | Smaller, QSFP-compatible cage |
| Backward compatibility | OSFP-only slots | QSFP28/QSFP+ with adapter |
| Coherent optics support | Yes | Limited |
| Port density per 1RU | Slightly lower | Slightly higher |
QSFP-DD wins on density and backward compatibility. OSFP wins on power headroom and thermal tolerance — which is exactly why it's the preferred form factor for 800G coherent applications and high-power DSP-based modules.
If your fabric is already built around QSFP-DD slots and you're running 400G QSFP-DD today, there's no hardware change required. But if you're speccing new 51.2T platforms or AI fabric switches from scratch in 2026, OSFP is the stronger choice for the highest-power 800G variants.
IEEE 802.3df and various MSA specs define multiple 800G OSFP optical variants. The right one depends on your fiber plant, distance requirements, and whether you need breakout capability.
800G OSFP SR8 runs 8 lanes of 100G over multimode fiber (OM4 or OM5), reaching up to 100M. It's the standard choice for intra-rack and cross-aisle connections in hyperscale data centers where fiber runs are short and cost per port is a primary driver.

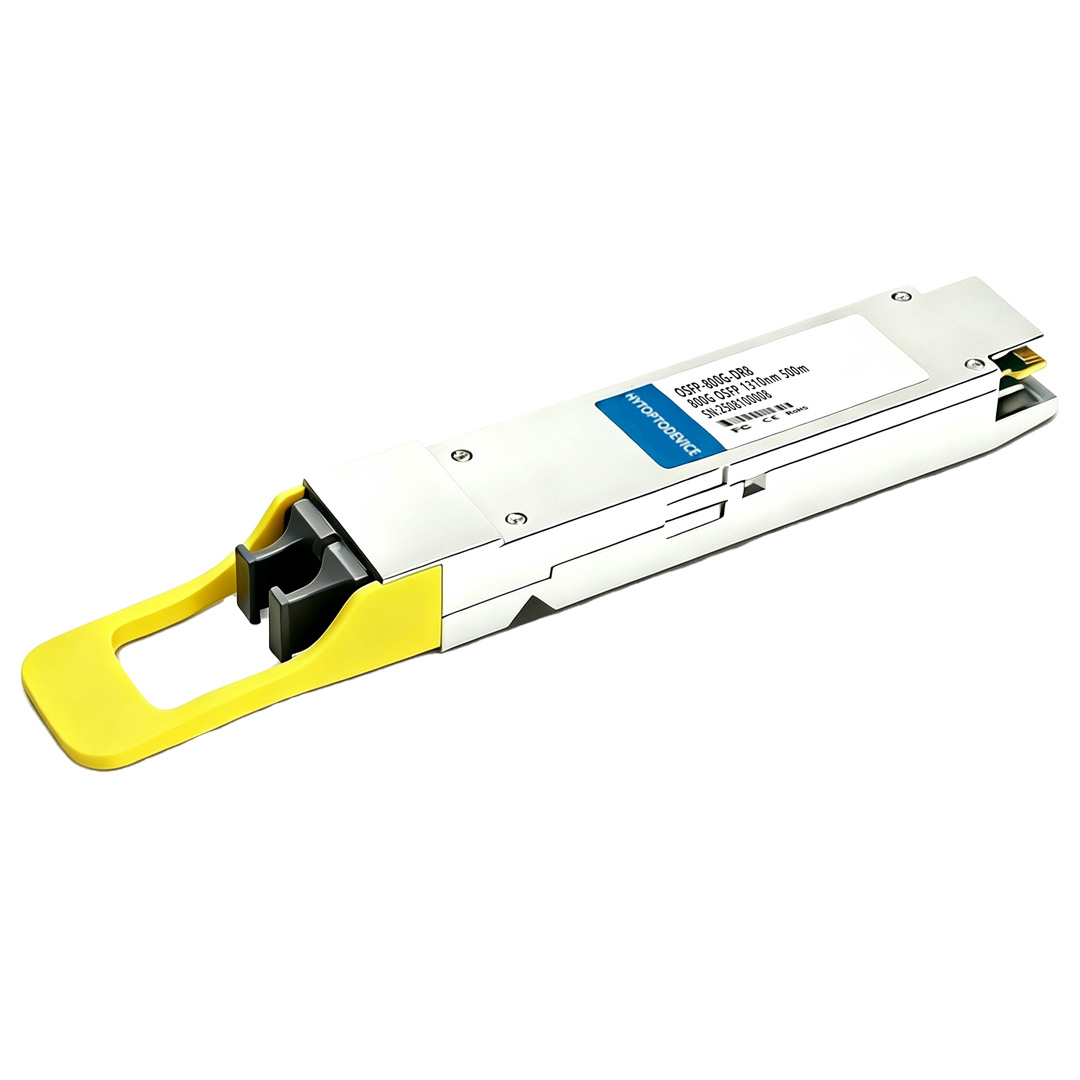

800G OSFP DR8 moves to single-mode fiber with a 500M reach using MPO-16 connectors. It targets campus-scale data center interconnects and top-of-rack to aggregation runs where multimode distance falls short.
800G OSFP FR8 reaches 2KM over single-mode fiber using 8 O-band wavelengths — suited for inter-building links and distributed data center architectures.
800G OSFP LR8 extends that to 10KM over the same 8 O-band wavelengths on single-mode fiber with LC duplex connectors. LR8 is the go-to for metro interconnects and DCI applications where you need 800G across a campus or between co-location facilities.

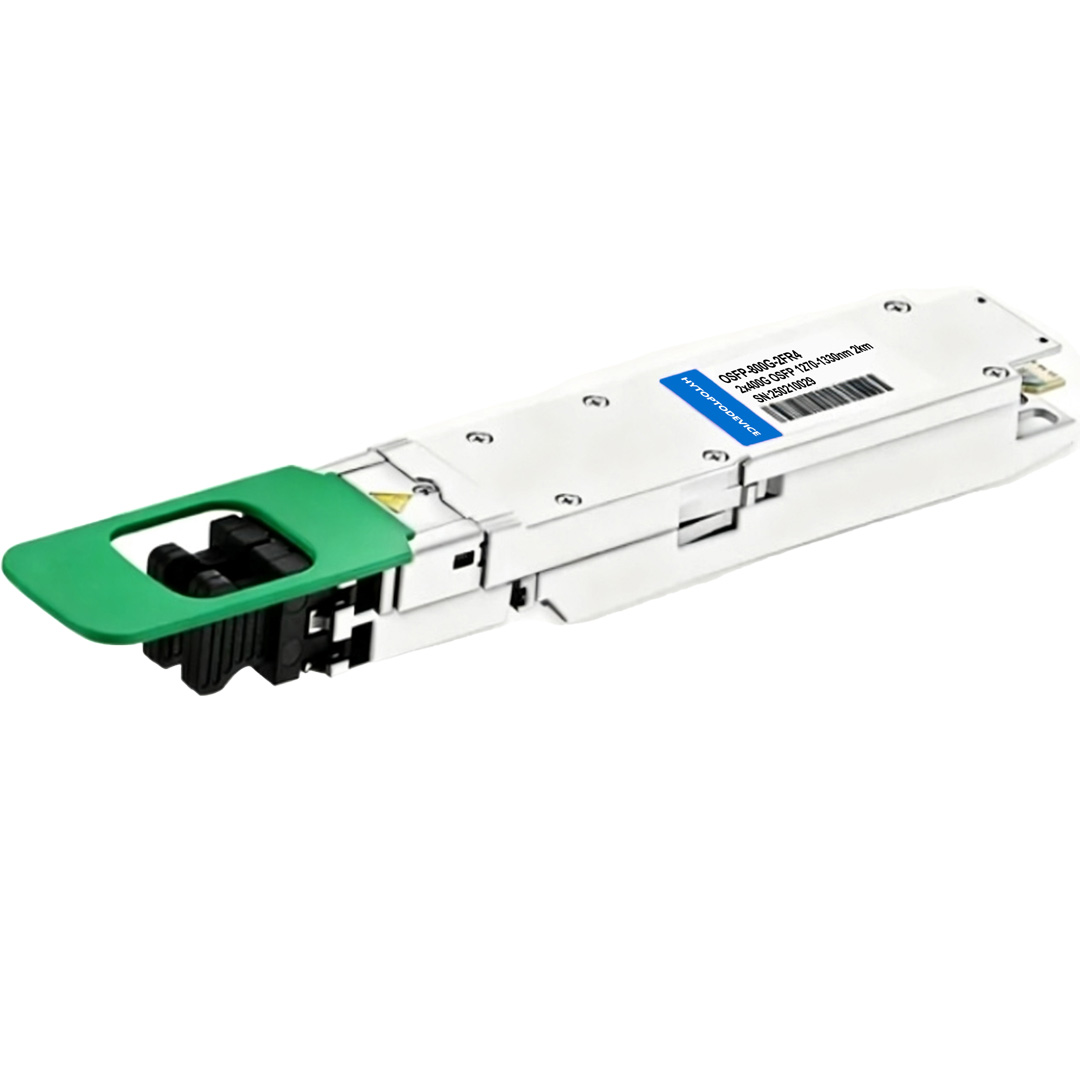

800G OSFP 2xFR4 and 2xLR4 split the 800G signal into two independent 400G channels, each using 4 wavelengths. These variants are particularly useful when connecting 800G spine ports to 400G leaf switches or 400G server NICs — one 800G port serving two 400G endpoints simultaneously.
This breakout capability is one of the more practical reasons to choose OSFP over QSFP-DD in mixed-speed environments.
Every 800G OSFP module uses 8 electrical lanes at 100G each with PAM4 signaling — 800 Gbps host-side bandwidth through a single OSFP electrical connector.
PAM4 at 100G per lane demands careful signal integrity work on the PCB. When evaluating switch platforms, check the retimer architecture. Some platforms use gearbox retimers to convert between 8x100G OSFP and the ASIC's internal lane structure. That affects both latency and power budget, so confirm it in the platform datasheet before locking in a design.
This is the spec that most frequently surprises engineers moving from 400G QSFP28 or QSFP-DD to 800G OSFP.
Typical power consumption by variant:
For context, a 100G QSFP28 LR4 draws roughly 3.5W. A fully populated 32-port OSFP switch running LR8 modules pulls over 600W from optics alone — thermal planning isn't optional at this scale.
Most 800G OSFP modules use front-to-back airflow and require adequate chassis airflow to stay within operating temperature. Confirm your switch's per-port thermal budget before finalizing your BOM. Some platforms derate port counts when running high-power OSFP variants.
800G OSFP is supported across the major switching platforms shipping in 2026:
Third-party compatible OSFP modules must be programmed with the correct EEPROM data to pass each platform's module authentication check. Modules that aren't properly coded to the target platform will either fail to come up or trigger unsupported transceiver warnings that block traffic — which is why vendor programming capability matters as much as the optics themselves.
Three deployment scenarios account for the bulk of 800G OSFP volume in 2026:
AI/ML GPU cluster interconnects. 800G spine switches connect GPU servers running 400G NICs via 2xFR4 or 2xLR4 breakout. At the scale of these builds — often thousands of GPU nodes — per-port cost is extremely sensitive.
Hyperscale data center spine-leaf fabrics. Operators upgrading from 400G spine layers are moving to 800G OSFP to double bandwidth without adding switches. SR8 and DR8 cover most intra-DC distances.
Data center interconnect (DCI). Metro DCI links running 800G coherent OSFP ZR/ZR+ modules over existing dark fiber. This is where OSFP's power headroom over QSFP-DD becomes operationally significant.
OEM 800G OSFP modules from Cisco or Arista carry significant price premiums — often $3,000 to $6,000 or more per unit for LR8 and coherent variants. On a 32-port spine switch, that's $96,000 to $192,000 in optics alone, per switch.
Third-party compatible 800G OSFP modules deliver 70 to 90 percent cost savings over those OEM prices. On a 10-switch AI fabric build, the difference can fund additional switching capacity or server nodes outright.
The compatibility risk that historically concerned engineers is addressable through pre-purchase validation. Published compatibility test videos, platform-specific EEPROM programming, and detailed datasheets let you verify fit before committing to volume.
HYTOPTODEVICE stocks 800G OSFP modules across the full spectrum from 1.25G to 800G in a single catalog — which matters when you're sourcing across multiple speeds for a mixed-generation build. The OEM/ODM program also supports custom-programmed and white-label modules for resellers or operators who need platform-specific coding at quantities from 100 to 1,000 units.
Before finalizing a 800G OSFP purchase, run through this checklist:
Platform coding: Confirm the module is programmed for your specific switch OS and platform. Cisco IOS XR, Arista EOS, and Junos each handle module authentication differently.
Airflow direction: Match the module's airflow direction (port-side intake vs. exhaust) to your chassis design. Mismatched airflow is a common field error on high-power optics.
Fiber plant readiness: SR8 requires OM4 or OM5 MPO-16. DR8 and FR8 require OS2 single-mode MPO-16. LR8 uses LC duplex. Confirm your fiber plant before ordering.
Power budget per slot: Check the switch's per-port power allocation. Some platforms cap OSFP power at 20W per port, which rules out certain coherent variants.
DOM support: Verify the module supports Digital Optical Monitoring for the parameters your NMS polls. Temperature, Tx power, Rx power, and voltage are standard — check laser bias current support if your monitoring stack requires it.
Datasheet and compatibility video: Download the module datasheet and review any published compatibility test footage for your target platform before placing a volume order.
Q1：What is the difference between 800G OSFP and 400G QSFP-DD?
A1:Both use 8x 100G PAM4 electrical lanes, but OSFP's larger footprint supports higher per-port power — up to ~24W vs. ~15W for QSFP-DD. That makes OSFP the preferred form factor for high-power 800G coherent modules. QSFP-DD offers better backward compatibility with existing QSFP28 and QSFP+ infrastructure.
Q2:Can I use an 800G OSFP module in a QSFP-DD port?
A2:No. OSFP and QSFP-DD use different cage and connector designs and are not mechanically interchangeable. Some platforms offer OSFP-to-QSFP-DD adapters for specific use cases, but these aren't universal and must be validated per platform.
Q3:What fiber type does 800G OSFP SR8 require?
A3:SR8 uses OM4 or OM5 multimode fiber with MPO-16 connectors, reaching up to 100M. For runs beyond 100M, you need DR8 (500M, OS2 single-mode, MPO-16) or FR8 (2KM, OS2 single-mode, MPO-16).
Q4:How do I verify a third-party 800G OSFP module is compatible with my switch?
A4:Confirm the module is programmed with the correct EEPROM data for your platform and OS version. Review the vendor's published compatibility test videos and download the datasheet to verify DOM support and power consumption. Test one unit before committing to a full BOM.
Q5:What does 800G OSFP 2xFR4 mean, and when should I use it?
A5:2xFR4 splits the 800G signal into two independent 400G FR4 channels. Use it when connecting an 800G OSFP spine port to two 400G leaf switches or 400G server NICs — effectively doubling port utilization on your 800G switch.
Q6:What is the typical power draw of an 800G OSFP LR8 module?
A6:Typically 16 to 20W, depending on the vendor and DSP implementation. That's well above a 400G QSFP28 LR4 at ~6.5W, so chassis-level thermal planning is essential before deploying LR8 at full port density.
Q7:Are 800G OSFP modules available from third-party compatible suppliers?
A7:Yes. Third-party compatible 800G OSFP modules are available and typically priced 70 to 90 percent below OEM equivalents. Verify platform-specific programming and review compatibility documentation before deploying at scale.
800G OSFP is no longer a roadmap item. It's the active form factor for AI fabric builds, hyperscale spine upgrades, and metro DCI deployments in 2026. Choosing the right variant — SR8 through LR8, or breakout 2xFR4/2xLR4 — comes down to your fiber plant, distance requirements, and whether you need 800G end-to-end or 2x400G breakout flexibility.
The power and thermal requirements are real and need to be planned upfront. The compatibility validation process is straightforward when your supplier publishes datasheets, compatibility test videos, and platform-specific programming documentation.
Explore the full 800G OSFP catalog and compatible transceiver range at hytoptodevice.com.
