What are DML and EML

Part 1: What is EML?

         The Electro-Absorption Modulated Laser (EML) is a core component in optical communications, functioning as a high-performance "optical signal switch." It is primarily used in the transmitter section of optical modules.It's important to note that EML is not a single laser but an integrated chip that monolithically combines two key components:

• DFB Laser (Distributed Feedback Laser): Generates a highly stable and pure continuous-wave (CW) laser beam, serving as the consistent "light source" within the EML.
• EAM Modulator (Electro-Absorption Modulator): Performs high-speed "on-off" modulation on this continuous beam, encoding electrical signals onto the optical signal.

Part 2: How EML Works, Its Advantages, and Differences from DML

          DML (Directly Modulated Laser) modulates the laser output by directly varying the drive current injected into the DFB laser. While this method is simple and cost-effective, rapid current changes during high-speed switching cause variations in the laser's wavelength (frequency), a phenomenon known as "chirp."

          A critical drawback of DML is that this chirp interacts with chromatic dispersion in optical fibers, leading to significant signal distortion over long distances. This limits both achievable transmission distance and data rates. In contrast, EML employs an indirect modulation scheme:

1. The integrated DFB laser operates under a constant current, producing a stable, chirp-free continuous wave of light.

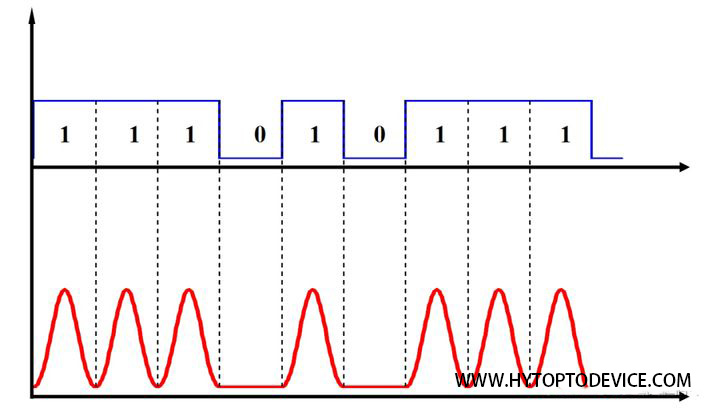

2. The electrical data signal is applied only to the EAM modulator. The EAM utilizes the Quantum-Confined Stark Effect (QCSE), changing its light absorption characteristics via an applied voltage: it absorbs light when a voltage is applied (output "0") and allows light to pass through when no voltage is applied (output "1").

    Key Advantages of EML over DML:

         Due to the stable laser operation and separate modulation,EML generates optical signals with minimal chirp and a high extinction ratio. This makes it exceptionally suitable for high-speed and long-distance transmission.In practical applications, EML remains the preferred laser solution for high-rate, long-reach scenarios, such as in 50G, 100G, and 200G optical modules.

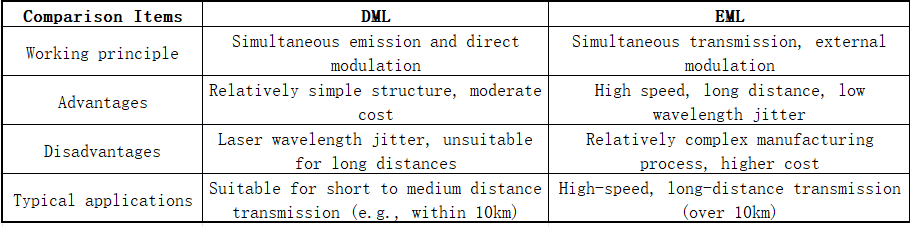

                                   The differences between DML and EML are as follows:

Part 3: Challenges Facing EML

         While EML is a relatively mature technology with a long history in high-speed optical communication, its development encounters certain bottlenecks as single-wavelength rates exceed 100G. The most notable challenges are the increasing difficulty in achieving higher bandwidths and consistently high manufacturing costs. Furthermore, the growing adoption of Silicon Photonics (SiPh) technology in high-bandwidth data center applications is applying competitive pressure on EML's market share. Although EML currently maintains advantages in specific areas requiring long-distance and high-performance transmission, this edge is narrowing as Silicon Photonics technology continues to advance, suggesting that EML faces potential substitution risks in some segments.
