The Ultimate Technical Parameter Guide for Optical Transceivers

By Jack January 9th, 2026 175 views
As a leading provider of optical communication solutions, HYTOPTODEVICE specializes in high-performance optical modules, DAC (Direct Attach Cables),AOC (Active Optical Cables) and optical devices. This guide is designed to help industry professionals and newcomers master the critical technical parameters of optical transceivers.
                Table of Contents
                      1. What is an Optical Transceiver Module?
                         1.1 Basic Working Principle
                      2. Key Selection Parameters for Optical Modules
                          2.1 Form Factor & Compatibility
                          2.2 Data Rate vs. Baud Rate (NRZ & PAM4)
                          2.3 Critical Transmitter (Tx) Characteristics
                          2.4 Receiver (Rx) Performance Metrics
                      3. Advanced Signal Quality & Noise Performance
                      4. Link Budget and Transmission Reach
                      5. Diagnostic Monitoring (DDM/DOM) & Temperature Range
                      6. Industry Standards: IEEE vs. MSA
                           6.1.IEEE 802.3 Standards
                           6.2.Multi-Source Agreements (MSAs)
                     7.Why Choose HYTOPTODEVICE?

1. What is an Optical Transceiver Module?


An optical transceiver module is the cornerstone of modern fiber optic networks. It functions as a bidirectional device that converts electrical signals into optical signals (transmission) and vice versa (reception).

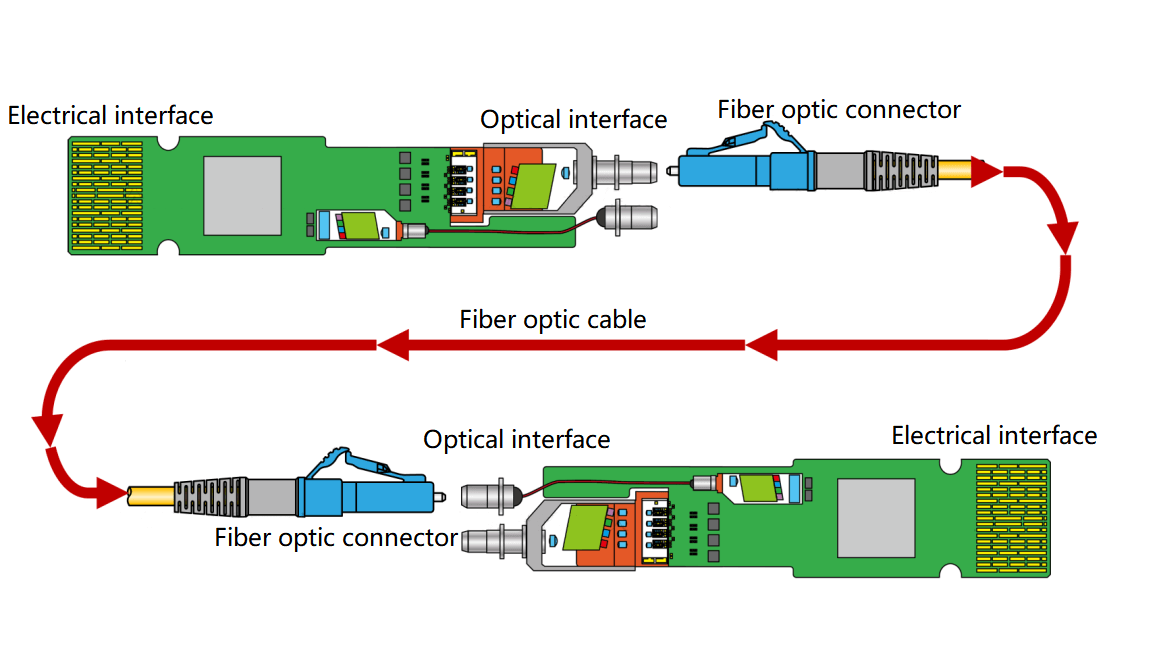

 1.1 Basic Working Principle

  • Transmit Path (Tx): The electrical signal from a switch or router drives an internal Laser Diode (LD). The driver circuit modulates the light (intensity, phase, or wavelength) to create an encoded data stream.
  • Receive Path (Rx): A photodetector (PIN or APD) captures incoming light, converting it back to electrical current. This is then processed by a Clock and Data Recovery (CDR) circuit to ensure data integrity.
  • Core Components: Every HYTOPTODEVICE module integrates high-quality laser drivers, TIAs (Trans-Impedance Amplifiers), and microcontrollers for real-time DDM (Digital Diagnostic Monitoring).



2. Key Selection Parameters for Optical Modules

Choosing the right module requires understanding both physical and performance-based specifications.

2.1 Form Factor & Compatibility

The form factor defines the physical dimensions and electrical interface. To ensure network stability, the module must be compatible with the host equipment’s MSA standards.

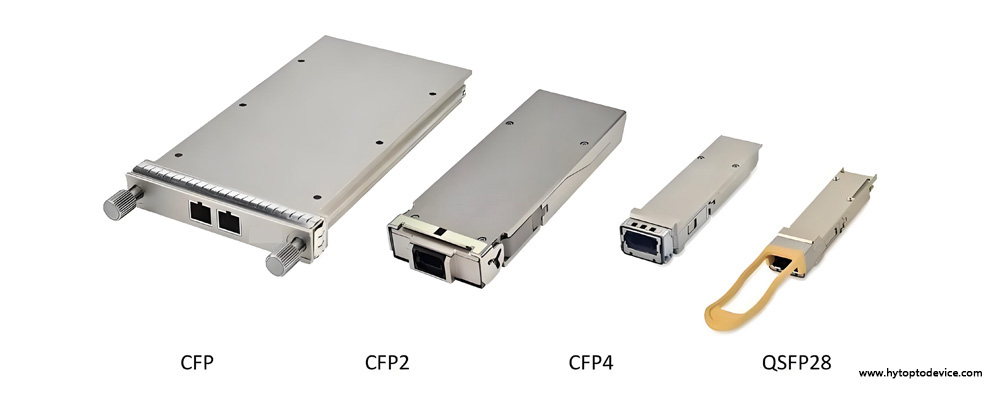

  • Common Types:Gbic, SFP, SFP+, CFP,CFP2,QSFP28, QSFP56,QSFP-DD, and the high-density OSFP.
QSFP-DD, while maintaining the same size as QSFP, improves bandwidth capacity through a dual-density interface design.

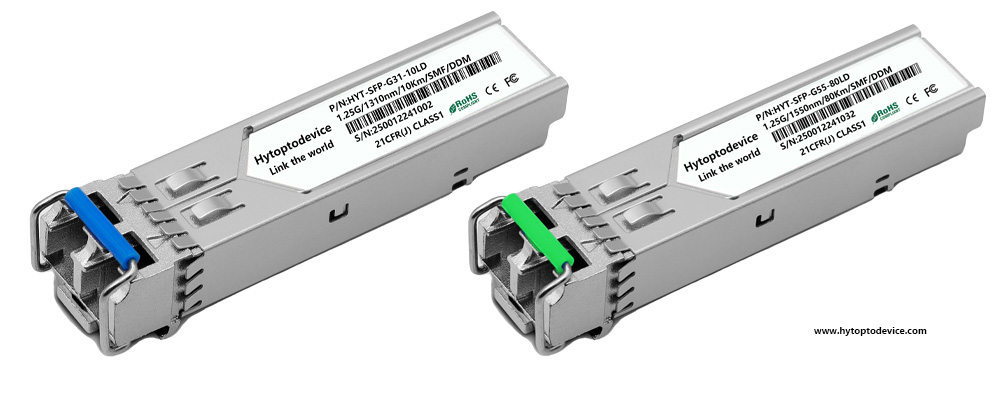

  • Ordinary SFP Optical Module Form Factor:




  • High-Speed Optical Transceiver Form Factor:



2.2 Data Rate vs. Baud Rate (NRZ & PAM4)

  • Bit Rate: The total throughput (e.g., 100Gbps).
  • Baud Rate (Symbol Rate): The number of symbols per second.
  • The Shift to PAM4: Modern high-speed modules (400G/800G) use PAM4 (Pulse Amplitude Modulation 4-level). Unlike traditional NRZ, which carries 1 bit per symbol, PAM4 carries 2 bits per symbol, allowing for higher data rates at lower baud rates.

2.3 Critical Transmitter (Tx) Characteristics

These parameters define the quality and purity of the transmitted optical signal.

  • Center Wavelength: The nominal central wavelength of the optical output (e.g., 1310nm, 1550nm, or a specific DWDM channel like 1550.12nm).
  • Spectral Characteristics:
  • Spectral Width: The spread of the optical spectrum. For lasers, it's typically defined as the Full Width at Half Maximum (FWHM). A narrower spectral width is critical for long-haul and DWDM systems to minimize chromatic dispersion.
  • Side Mode Suppression Ratio (SMSR): For Distributed Feedback (DFB) lasers. It measures the ratio (in dB) of the power in the main longitudinal mode to the power in the strongest side mode. A high SMSR (>30 dB) indicates a stable, single-mode laser, essential for high-quality transmission.

  • Output Optical Power: The power launched into the fiber, measured in dBm. Must be within a specified range.
  • Extinction Ratio (ER): The ratio (in dB) of the optical power for a logical "1" to the power for a logical "0". A higher ER generally improves receiver sensitivity.
  • Optical Modulation Amplitude (OMA): The difference in optical power between the logic "1" and "0" levels. A key parameter for receiver performance calculation.



2.4 Receiver (Rx) Performance Metrics

  • Receiver Sensitivity: The minimum optical power required to maintain a specific Bit Error Rate (BER).
  • Receiver Overload (Saturation): The maximum power a receiver can handle before errors occur.
  • Dynamic Range: The window between Sensitivity and Overload.
  • Optical Modulation Amplitude (OMA): The difference in optical power between the logic "1" and "0" levels. A key parameter for receiver performance calculation.

3. Advanced Signal Quality & Noise Performance

As data rates push beyond 25Gbps, simple power measurements are no longer sufficient to guarantee link stability. In high-speed 100G, 400G, and 800G networks, signal integrity is challenged by dispersion, reflection, and thermal noise. To ensure a "clean" link, we monitor several advanced parameters:

3.1 TDECQ (Transmitter and Dispersion Eye Closure Quaternary)

For PAM4-based modules (like 400G QSFP-DD), TDECQ is the most critical metric. It replaces the traditional "Eye Mask" test used in NRZ.

  • What it measures: TDECQ quantifies the optical power penalty caused by the transmitter’s noise and jitter relative to an ideal signal.

  • The Goal: A lower TDECQ value indicates a higher-quality transmitter with a wider "eye" opening. IEEE standards typically require TDECQ to be below 4.5dB for reliable transmission.

3.2 Bit Error Rate (BER) & FEC (Forward Error Correction)

In the world of high-speed optics, transmission is rarely "error-free" at the physical layer.

  • Pre-FEC BER: The raw error rate before the system applies correction algorithms.

  • Post-FEC BER: The error rate after correction, which must reach $10^{-12}$ or better for carrier-grade performance.

  • Technical Insight: High-quality modules maintain a low Pre-FEC BER, reducing the workload on the switch’s DSP, which in turn lowers system latency and power consumption.

3.3 Linearity and RLM (Level Separation Mismatch Ratio)

PAM4 uses four voltage levels (0, 1, 2, 3) to represent data. If these levels are not perfectly spaced, the signal becomes non-linear.

  • RLM: Measures how evenly these four levels are distributed. A low RLM leads to "level compression," making it difficult for the receiver to distinguish between symbols, resulting in massive packet loss.

3.4 Jitter Performance

Jitter is the deviation of a signal's transition from its ideal timing.

  • Random Jitter (RJ): Caused by thermal noise.

  • Deterministic Jitter (DJ): Caused by circuit design or EMI.

  • Effective jitter management ensures that the "eye" of the signal stays open horizontally, providing the receiver enough time to sample the data correctly.

3.5 SMSR (Side-Mode Suppression Ratio)

For long-distance modules using DFB or EML lasers, SMSR is vital.

  • It measures the power ratio between the main longitudinal mode and the most powerful side mode.

  • An SMSR of >30dB is required to prevent "spectral broadening," which causes chromatic dispersion and signal degradation over long-haul fiber spans.


4. Link Budget and Transmission Reach

Link Budget: The total permissible channel loss, calculated as:

Transmitter Power (dBm) - Receiver Sensitivity (dBm). It must account for all fiber losses,

This budget must cover fiber loss, connector attenuation, and dispersion penalties. HYTOPTODEVICE offers solutions across all reach classifications::The maximum achievable distance (m/km) over a specific fiber type (SMF/MMF). Classifications: SR, LR, ER, ZR.

  • SR (Short Reach): Multi-mode fiber (MMF) from 100m-2km.
  • LR/ER/ZR: Single-mode fiber (SMF) for distances ranging from 10km to 80,100,120,160km+.

  5. Diagnostic Monitoring (DDM/DOM) & Temperature Range

  • DDM (Digital Diagnostic Monitoring) provides real-time access to operating parameters:Temperature, Voltage, Bias Current, Tx Power, and Rx Power.
  • Temperature Ratings:
  • Commercial (C-Temp): 0°C to 70°C (Standard Data Centers).
  • Industrial (I-Temp): -40°C to +85°C (Outdoor deployment/Telecommunications).

    6. Industry Standards: IEEE vs. MSA

    To ensure that a transceiver from Vendor A works seamlessly in a switch from Vendor B, the industry relies on two primary types of standards: IEEE 802.3 and Multi-Source Agreements (MSAs).

    6.1 IEEE 802.3 Standards (The Logical Protocol)

    The IEEE (Institute of Electrical and Electronics Engineers) defines the logical and electrical "language" of the network. It focuses on the Ethernet Layer to ensure data integrity across the link.

    • What it defines: Data rates (10G, 100G, 400G), modulation techniques (NRZ, PAM4), error correction (FEC), and maximum transmission distances.

    • Common Standards:

      • IEEE 802.3ae: The foundation for 10Gbps Ethernet.

      • IEEE 802.3ba: The standard for 40G and 100G Ethernet.

      • IEEE 802.3bs: The standard for 200G and 400G Ethernet.

    • Key Insight: If a module is "IEEE compliant," it means the signal it sends can be understood by any other IEEE-compliant device at the other end of the cable.

    6.2 Multi-Source Agreements (MSAs) (The Physical Design)

    While IEEE tells the module how to talk, MSAs tell the module how to fit. MSAs are agreements between multiple manufacturers to standardize the physical form factor and interface.

    • What it defines: Physical dimensions (size/shape), connector types (LC, MPO, RJ45), electrical pin assignments, and the I2C register map (how DDM/DOM data is read).

    • Why they exist: Because the IEEE does not define the "box" the technology sits in. Without MSAs, every switch vendor might have a different shaped port.

    • Key MSA Groups:

      • SFF Committee: Defines SFP, SFP+, and QSFP form factors.

      • QSFP-DD MSA: Defines the high-density 400G/800G form factors.

      • 10G Copper MSA: Specifically governs the unique power and thermal requirements for SFP+ RJ45 modules.



    7. Why Choose HYTOPTODEVICE?

    At HYTOPTODEVICE, we don't just sell modules; we provide reliability.

    • Rigorous Testing: Every module undergoes 100% compatibility and performance testing on original brand switches.

    • Technical Expertise: From 1G SFP、10G SFP+ Copper modules to 400G、800G QSFP-DD/OSFP, we understand the nuances of the link budget and thermal management.

    • Global Supply: Ready-to-ship inventory ensures your network downtime is minimized.

    Looking for a specific technical datasheet or a 10G SFP+ RJ45 solution? Please feel free to Contact Us.
