In the high-speed world of communications, the integrity of every component in optical network is paramount. While much attention is given to core equipment like fiber optical transceivers and switches, the humble fiber optic patch cable is often an overlooked critical link. Improper handling can lead to signal degradation, increased latency, and even permanent hardware damage.HYTOPTODEVICE TECHNOLOGY, a professional manufacturer of sfp modules will give professional guide about optical fiber.
1.Selection and Procurement Guidelines For Optical Fiber Cable
Choosing the right cable is the first critical step.

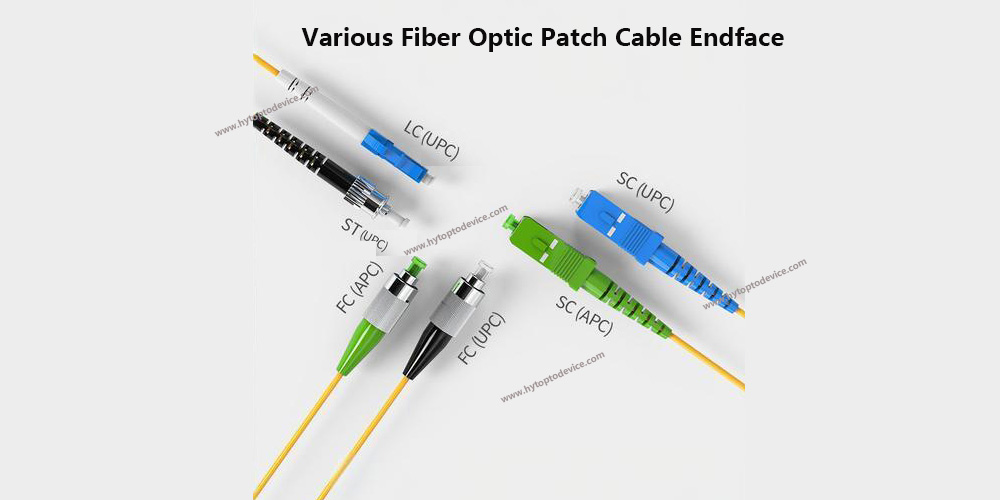

· 1. 1.Match Connector Types Correctly for Optical Transceiver and Optical Communication Products · Common Types: LC (Small Form), SC (Square), FC (Threaded), ST (Bayonet), MPO/MTP (Multi-fiber). · Key Point: Ensure connectors match the ports on your optical modules and panels. For MPO/MTP cables, pay strict attention to polarity (Type A/B/C) as labeled.

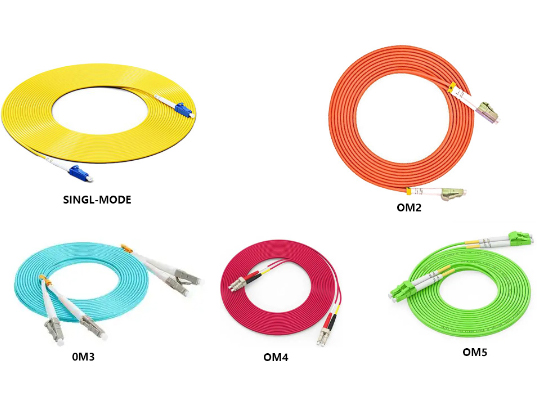

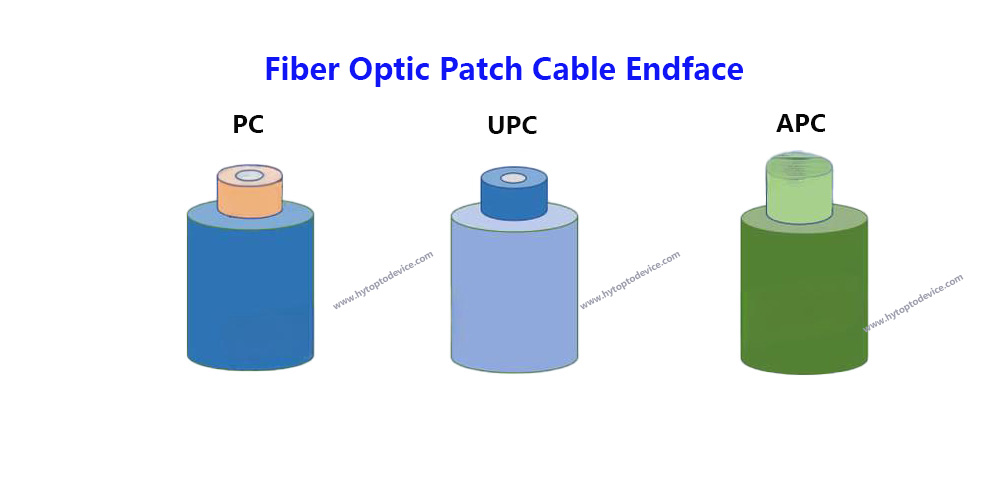

· 1.2. Choose the Correct Fiber Type for Optical Module Transmission · Single-Mode (SM): Uses a 9µm core for long-distance transmission (10km+), ideal for data center interconnects. the corresponding fiber transceiver include:SFP transceiver, SFP+ module, QSFP28 transceiver. · Multi-Mode (MM): Uses a 50µm or 62.5µm core for shorter distances (typically ≤550m), cost-effective for intra-rack and intra-building links.include OM2、OM3、OM3、OM4、OM5. The Right Optical Fiber Patch Calbe for Optical Transceivers · Critical Rule: NEVER mix Single-Mode and Multi-Mode fibers or cables, as this causes severe signal attenuation. 1.3. Confirm the Polish Type · UPC (Blue Connector): Standard polish with a return loss of about -50dB. · APC (Green Connector): Features an 8° angled polish for superior return loss (-60dB), used in CATV, FTTx/PON systems. · Critical Rule: UPC and APC connectors are NOT compatible. Mating them will cause permanent physical damage to the end-faces. Optical Fiber Patch Cable End-face Selection Guide to Relation with Optical Module ·1.4. Select the Appropriate Jacket and Construction · Indoor: Standard PVC or LSZH (Low Smoke Zero Halogen) jackets. · Outdoor/Armored: Designed to be waterproof, crush-resistant, and rodent-proof for harsh environments. · Bend-Insensitive (e.g., G657 fiber): Essential for high-density cabling where tight bends are unavoidable. 2: Installation and Operational Protocols
Proper handling during installation is non-negotiable. 2.1. End-Face Cleaning: A Mandatory Pre-Connection Step When Producing Optical Modules or AOC Cables · Before every test or connection, clean both cable and port end-faces with professional tools (click-pens, cassette cleaners). · Absolute Prohibition: Never touch the ferrule with your fingers. · Storage Rule: Always install dust caps on unused connectors. Never leave fiber ends exposed. 2.2. Respect Minimum Bend Radius · Maintain a bend radius greater than 10x the cable diameter for static installs, and 20x for dynamic applications (often >30mm). · Avoid kinks, knots, or sharp bends to prevent microbending loss.
2.3. Proper Insertion and Removal · Align the connector carefully before insertion. A firm "click" indicates proper seating. · To remove, always press the connector's latch and pull straight out. Never pull on the cable itself. 2.4. Manage Slack and Tension · Use cable managers or spools for excess length. Secure cables with hook-and-loop ties—avoid over-tightening plastic zip ties. · Do not exceed the cable's rated pull tension (typically <30N) during installation.
3. Daily Maintenance and Management
Proactive maintenance prevents failures. 3.1. Comprehensive Labeling for Optcial Fiber Cables · Label both ends of every patch cable with unique identifiers, path, or port information for easy troubleshooting. 3.2. Scheduled Inspection and Cleaning · Inspect end-face cleanliness every 6-12 months using a fiber microscope. · Pro Tip: Re-inspect and clean end-faces after approximately 10-20 mating cycles, as repeated connections can introduce contamination. · Check cables physically for jacket damage, aging, or connector looseness. 3.3. Performance Verification · Use an optical power meter or OTDR after installation or changes to verify insertion loss (target: ≤0.3dB for SM, ≤0.5dB for MM). this is very important for Fiber Optical Modules Manufacturing. 3.4. Safe Storage of Spares · Store spare patch cables with dust caps on, in a dry, anti-static environment, organized by type to prevent misuse. 4.Prohibited Actions and Common Pitfalls
· Never hot-plug optical transceivers. While the fiber carries no current, the optical module can be damaged. · Never force a connection. If it doesn't mate smoothly, check for connector type or polish mismatch. · Never use substitute cleaning materials like shirt sleeves or cotton swabs. Use only tools designed for
5.Why These Standards Protect Your Entire Optical Ecosystem
The performance of your investment in optical transceivers, AOCs, and switches is wholly dependent on the quality and care of the passive links connecting them. A single contaminated end-face or a mismatched jumper can bottleneck an entire channel, leading to costly troubleshooting and downtime.
